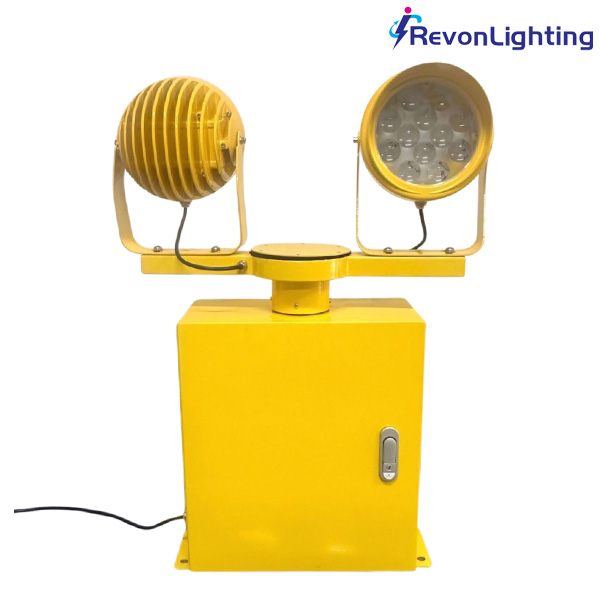

Rotating beacon light aviation airport beacon lights rotating beacon led rotating beacon rotating beacon light
Detailed introduction
A rotating beacon light is a vital visual aid in aviation, commonly used at airports, heliports, and airfields. It emits bright, rotating LED light signals to enhance visibility, especially during nighttime or low-visibility conditions. These beacons help pilots identify airport locations from a distance and assist in safe navigation. With energy-efficient LEDs and durable construction, they ensure reliable, long-term performance in harsh environments.
Overview:
Rotating beacon lights are essential aviation safety devices used at airports, heliports, and airfields to provide clear visual identification. These LED rotating beacons emit bright, rotating light signals that enhance visibility during nighttime or low-visibility conditions, helping pilots accurately locate runways and landing zones. Designed for energy efficiency and durability, they withstand harsh weather and offer long-lasting, reliable performance. Widely used in commercial, military, and private aviation, rotating beacon lights play a crucial role in safe navigation and airfield operations.
Compliance:
1. ICAO Annex 14 Volume I 5.3.3( ICAO: Aerodromes, Annex 14, Vol. 1, 8th Ed. Photometry - Ch. 5 Sec.
5.3.3.6 and 5.3.3.7)
2. FAA: L-801 A/C150/5345-12
Features:
1. High-Performance LED Array – Ultra-bright LEDs deliver exceptional luminous intensity while maintaining excellent energy efficiency.
2. Dual Voltage Compatibility – Supports both DC (12–48V) and AC (100–265V, 50/60Hz) inputs, offering versatile and flexible installation options.
3. Long-Life Illumination – LED light source rated for over 100,000 hours of continuous operation, minimizing maintenance and downtime.
4. Dual-Color Configuration – Selectable white or yellow light output to meet diverse operational requirements and standards.
5. Advanced Motor Protection – Equipped with an impedance-shielded motor for reliable, burnout-resistant performance.
6. Regulatory-Compliant Flash Rate – Rotates at 12 RPM, producing 24 flashes per minute for clear and consistent visual identification.
7. Durable Weatherproof Enclosure – Constructed from stainless steel with a corrosion-resistant yellow powder coating to withstand harsh environments.
8. Precision Optical System – Designed to create a focused beam pattern that reduces light pollution and maximizes long-range visibility.
9. Zero-Maintenance Design– Engineered for continuous, long-term operation without the need for routine servicing.
Specification:
|
Product Name |
Rotating beacon light aviation airport beacon lights rotating beacon led rotating beacon rotating beacon light |
|
Mode NO.: |
AO-AP-R2 |
|
Color: |
White and Yellow(others are optional) |
|
Light source:
|
LEDs |
|
Light lumen/ intensity: |
>14000lm/ >25000cd |
|
Operation mode: |
Steady burning |
|
Installation type: |
Surface mounting |
|
Flashing Characteristics:
|
12RPM(Revolutions Per Minute), 24 flashes per minute
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Light Head: |
2pcs light heads |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated stainless steel |
|
Weight(kg): |
22kg |
|
IP Grade: |
IP65 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Power: |
Each LED head<50W, system power<200W |

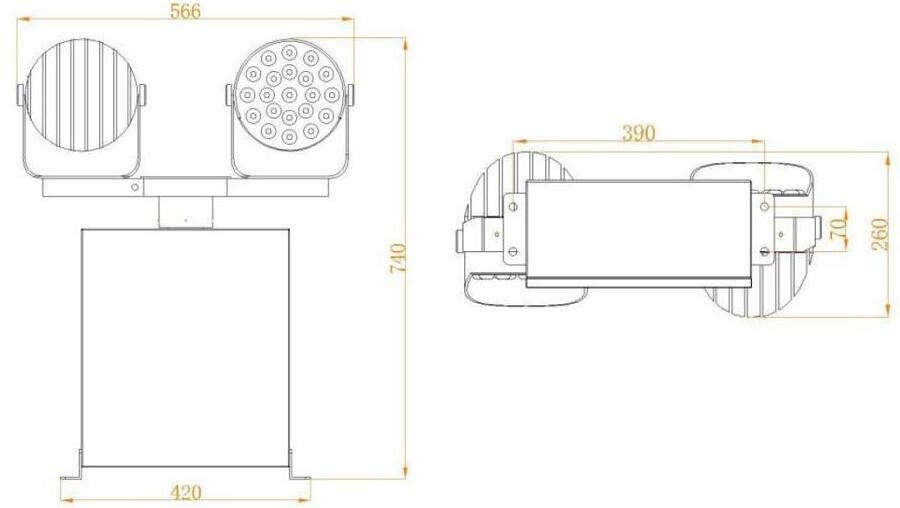

Dimension & Installation:
Applications:
Rotating beacon lights are crucial for aviation safety, used at airports, heliports, and airfields to provide clear visual guidance. These LED rotating beacons emit bright, rotating light signals that improve visibility during night and low-visibility conditions, helping pilots accurately identify runways and landing zones. Built for durability and energy efficiency, they ensure reliable performance in all weather, enhancing safe navigation and airfield operations.
