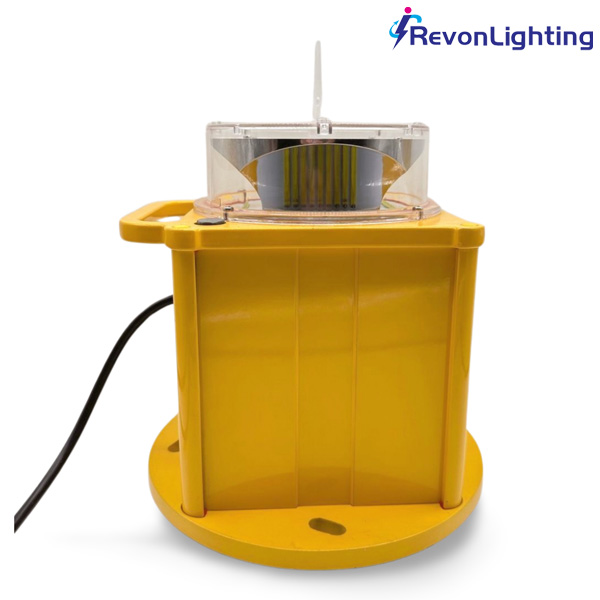

Heliport beacon for helipad lighting AO-HP-B5

Heliport beacons, also known as helipad beacons, are specialized lighting systems designed to provide visual guidance to pilots during takeoff, landing, and ground operations at heliports. These beacons are an essential component of heliport infrastructure, ensuring the safety and efficient operation of helicopter flights. In this article, we will explore the key features and functions of heliport beacons.

Heliport beacons are typically installed on top of a mast or other elevated structures to provide maximum visibility. They emit a bright and steady light that is easily recognizable from a distance, even in adverse weather conditions. The color of the light varies depending on the type of heliport and its operating conditions. In most cases, a green light is used to indicate a heliport with a single approach direction, while a white and yellow light combination is used for heliports with multiple approach directions.

The primary purpose of heliport beacons is to assist pilots in identifying the location of the helipad and its orientation. By providing a clear visual reference, the beacons help pilots align their approach and maintain the correct trajectory during landing. They also serve as a warning to other aircraft in the vicinity, indicating the presence of a heliport and potentially conflicting air traffic.

Heliport beacons are designed to meet regulatory requirements set by aviation authorities such as the Federal Aviation Administration (FAA). These regulations specify the minimum intensity and characteristics of the light emitted by the beacons, ensuring consistent and standardized lighting across different heliports. Regular maintenance and inspections are essential to ensure that heliport beacons are functioning properly and providing the necessary visibility to pilots.

In addition to their primary function of providing visual guidance, heliport beacons also contribute to the overall safety and efficiency of heliport operations. By enhancing the visibility of heliports, they help minimize the risk of accidents and improve situational awareness for pilots. Moreover, the presence of a well-lit heliport beacon can assist emergency services and ground personnel in quickly locating and accessing the heliport during critical situations.

Heliport beacons are essential components of heliport infrastructure, providing visual guidance and enhancing the safety of helicopter operations. These beacons ensure clear visibility for pilots during takeoff, landing, and ground operations, even in low light or adverse weather conditions. By adhering to regulatory requirements and conducting regular maintenance, heliport operators can ensure the proper functioning of the beacons and contribute to the overall safety and efficiency of heliport operations.

     Overview:

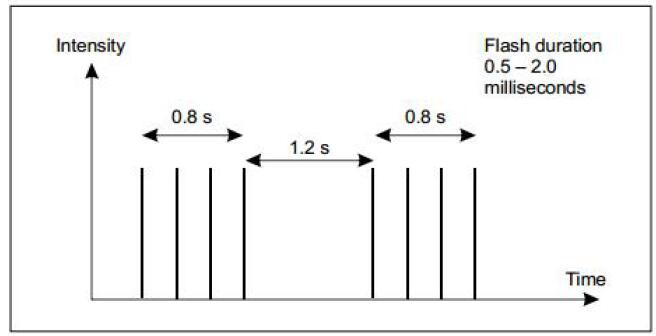

Heliport beacon for helipad lighting AO-HP-B5 is necessary visual guidance and identification of the heliport. The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range. The helipad beacon flashes white color 4 times in 0.8s and stop for 1.2s, then start new circle for 2s (0.8s+1.2s ).

     Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA  AC 150/5390-2B Heliport Design Guide

     Features:

1. Adopt super bright brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection...

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. UV protection Powder coated bright yellow color base make better visibility.

     Specification:

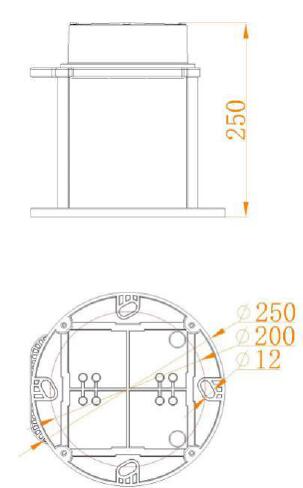

     Dimension & Installation:

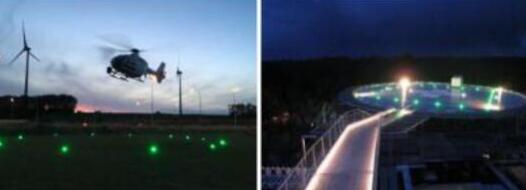

     Applications:

Heliport beacon for helipad lighting AO-HP-B5 is used for heliport lighting as a visual guidance and identification, it needs to use with other helipad light.
